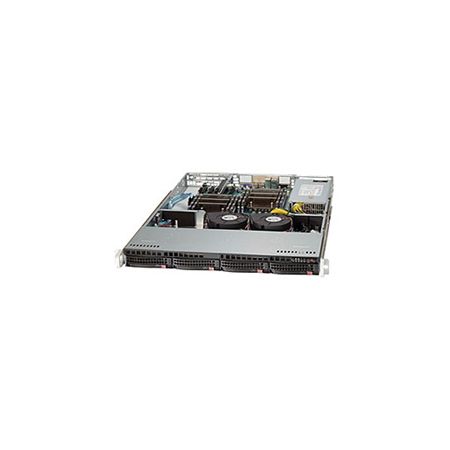

Supermicro SuperServer 6017R-TDF Barebone System - 1U Rack-mountable - Intel C602 Chipset - Socket R LGA-2011 - 2 x Processor Support - Black Item # 248221
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
248221
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Designed for optimal performance, the SuperServers come in a high-density 1U form-factor. These SuperServers are ideal for network infrastructure, front-end enterprise, and minimal-downtime cluster server systems.
Product Details
| Item # | 248221 |
| Manufacturer # | NC4068 |
| Number of SATA Interfaces | 4 |
| Ethernet Technology | Fast Ethernet; Gigabit Ethernet |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon |
| Maximum Power Supply Wattage | 480 W |
| height | 1.7 in |
| Certifications & Standards | ACPI 1.0 / 2.0 |
| Total Number of USB Ports | 9 |
| Graphics Controller Manufacturer | Matrox |
| width | 17.2 in |
| Product Line | SuperServer |
| package contents | SuperServer 6017R-TDF; 1 x Super X9DRD-iF Motherboard; 1 x 1U Chassis; 1 x 815 SAS BACKPLANE W/O AMI 9071 -O-P; 1 x SATA SET OF 4-70/59/48/38CM ROUND S-RA, PBF; 1 x Driver CD for X9 Series; 1 x RSC-RR1U-E16 with PIC-E x16 output Riser Card; 2 x 1U Passive CPU Heat Sink for X9 Generation Motherboards w/ Narrow ILM; 1 x 440W/480W Platinum Power Supply; 1 x Black DVD Dummy Cover for SC813, 813M, 815, PBF-RoHS; 2 x 97Lx94Wx37H mm 5K RPM SC813 Rev. M Chassis Middle Cooling Blower |
| depth | 25.6 in |
| Product Name | SuperServer 6017R-TDF |
| QuickPath Interconnect Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| Rack Height | 1U |
| manufacturer | Supermicro Computer, Inc |
| 64-bit Processing | Yes |
| Number of 3.5" Bays | 4 |
| VGA | Yes |
| weight | 36.16 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 256 GB |
| Number of Total Memory Slots | 8 |
| controller type | Serial ATA/600 |
| Processor Technology | vPro Technology; Virtualization Technology; Trusted Execution Technology; Enhanced SpeedStep Technology; Hyper-Threading Technology |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 9 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR3-1600/PC3-12800 |
| Number of Power Supplies Installed | 1 |
| Number of Total Expansion Slots | 1 |
| Processor Socket | Socket R LGA-2011 |
| Chipset Model | C602 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | G200 |
| form factor | Rack-mountable |
| Memory Technology | DDR3 SDRAM |
| RAM Supported | PC3-6400 - 256 GB - registered - ECC ¦ PC3-8500 - 256 GB - registered - ECC ¦ PC3-10600 - 256 GB - registered - ECC ¦ PC3-12800 - 256 GB - registered - ECC ¦ PC3-6400 - 64 GB - unbuffered - ECC ¦ PC3-8500 - 64 GB - unbuffered - ECC ¦ PC3-10600 - 64 GB - unbuffered - ECC ¦ PC3-10600 - 64 GB - unbuffered - ECC |
| color | black |
| warranty length | 3-year limited |
| model name | 6017R-TDF |
| QuickPath Interconnect | 8 GT/s |
| Show More ▾ |
